Initial Commit

.gitignore

@@ -0,0 +1,2 @@
+out/
+test.exe

README.md

@@ -0,0 +1,40 @@
+# Go gPIo app
+
+Binarys befinden sich unter https://nc.masilux.de/index.php/s/bEzP2msezHPzyee
+
+Zum Kompilieren folgende Go-Abhängigkeiten installieren:
+ - `go get github.com/gorilla/mux`
+ - `go get github.com/stianeikeland/go-rpio`
+ - `go get github.com/frickelblog/surgemq/service`
+ - `go get github.com/frickelblog/message`
+
+Kompilieren mit: `go build main.go -o gPIo.bin`
+Kompilieren unter Windows (Powesrhell) mit Zielsystem Linux/ARM: `$env:GOOS="linux"; $env:GOARCH="arm"; go build -o gPIo.arm`
+
+
+**Konfiguration**
+Die Konfiguration erfolgt in der Datei `config.json`, z.B:
+```
+{
+   "debug": true,
+   "enablefilesystem": true,
+   "enablemqttserver": true,
+	"enablemqttclient": true,
+	"mqttserverhost": "127.0.0.1",
+	"mqttservertcpport": "1883",
+	"mqttserverwsport": "8080",
+   "mqttclientaddress": "127.0.0.1",
+   "mqttclientport": "1883",
+	"mqttclientuser": "",
+	"mqttclientpass": "",

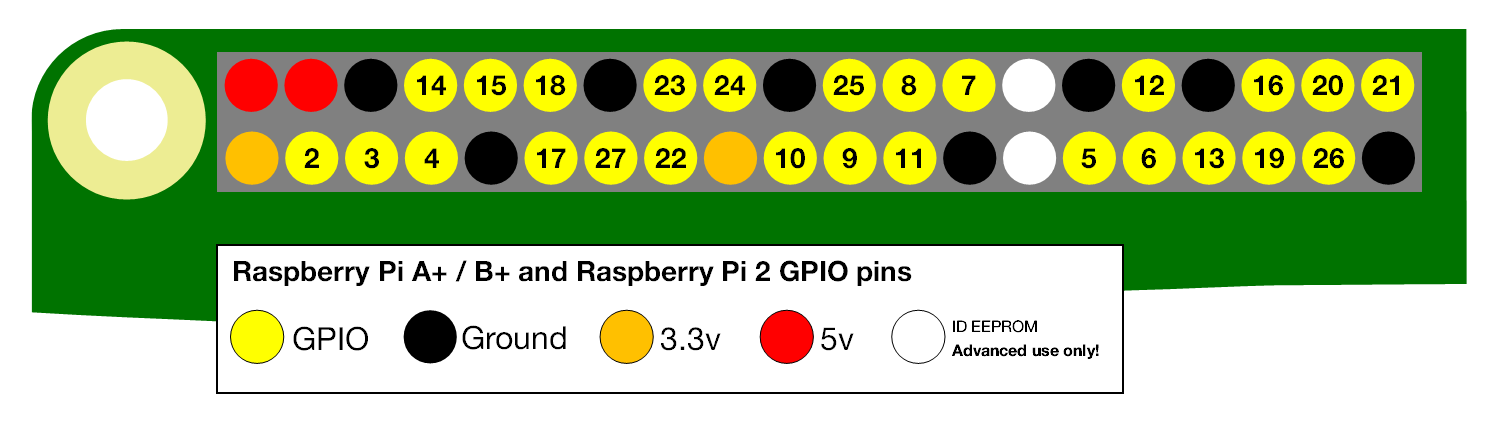

+   "pins": [
+        {   "pin":17, "io":"in", "state":"0", "file":"", "mqtttopic":"/pin/17"  },
+        {   "pin":20, "io":"out", "state":"1", "file":"", "mqtttopic":"/pin/20"  },
+        {   "pin":21, "io":"in", "state":"0", "file":"", "mqtttopic":"/pin/21"  },
+        {   "pin":22, "io":"in", "state":"0", "file":"","mqtttopic":"/pin/22"  }
+    ]
+}
+```
+
+**Anwendung**
+

config.json

@@ -0,0 +1,19 @@
+{
+    "debug": true,
+    "enablefilesystem": true,
+    "enablemqttserver": true,
+	"enablemqttclient": true,
+	"mqttserverhost": "127.0.0.1",
+	"mqttservertcpport": "1883",
+	"mqttserverwsport": "8080",
+    "mqttclientaddress": "127.0.0.1",
+    "mqttclientport": "1883",
+	"mqttclientuser": "",
+	"mqttclientpass": "",
+    "pins": [
+        {   "pin":17, "io":"in", "state":"0", "file":"", "mqtttopic":"/pin/17"  },
+        {   "pin":20, "io":"out", "state":"1", "file":"", "mqtttopic":"/pin/20"  },
+        {   "pin":21, "io":"in", "state":"0", "file":"", "mqtttopic":"/pin/21"  },
+        {   "pin":22, "io":"in", "state":"0", "file":"","mqtttopic":"/pin/22"  }
+    ]
+}

main.go

@@ -0,0 +1,409 @@
+package main
+
+import (
+	"encoding/json"
+	"fmt"
+	"io/ioutil"
+	"log"
+	"os"
+	"os/exec"
+	"strconv"
+	"strings"
+	"time"
+
+	"github.com/frickelblog/message"
+	"github.com/frickelblog/surgemq/service"
+	"github.com/stianeikeland/go-rpio"
+)
+
+var (
+	config     = readConfig("./config.json")
+	MQTTClient service.Client
+	srv        *service.Server
+	client     *service.Client
+)
+
+type Configuration struct {
+	Debug             bool               `json:"debug"`
+	EnableFileSystem  bool               `json:"enablefilesystem"`
+	EnableMQTTServer  bool               `json:"enablemqttserver"`
+	EnableMQTTClient  bool               `json:"enablemqttclient"`
+	MQTTServerHost    string             `json:"mqttserverhost"`
+	MQTTServerTCPPort string             `json:"mqttservertcpport"`
+	MQTTServerWSPort  string             `json:"mqttserverwsport"`
+	MQTTClientAddress string             `json:"mqttclientaddress"`
+	MQTTClientPort    string             `json:"mqttclientport"`
+	MQTTClientUser    string             `json:"mqttclientuser"`
+	MQTTClientPass    string             `json:"mqttclientpass"`
+	Pins              []PinConfiguration `json:"pins"`
+}
+
+type PinConfiguration struct {
+	Pin       int8   `json:"pin"`
+	IO        string `json:"io"`
+	File      string `json:"file"`
+	MQTTTopic string `json:"mqtttopic"`
+	State     string `json:"state"`
+}
+
+// our main function
+func main() {
+
+	// --------------------------------------------------------------------------------
+	// Create a new mqtt server
+	if config.EnableMQTTServer {
+		srv = &service.Server{
+			KeepAlive:        300,           // seconds
+			ConnectTimeout:   2,             // seconds
+			SessionsProvider: "mem",         // keeps sessions in memory
+			Authenticator:    "mockSuccess", // always succeed
+			TopicsProvider:   "mem",         // keeps topic subscriptions in memory
+		}
+
+		// Websocket // "tcp://127.0.0.1:1883" => TCP COnnection vom MQTT Server als WS-Backend
+		addr := "tcp://" + config.MQTTServerHost + ":" + config.MQTTServerTCPPort
+		AddWebsocketHandler("/mqtt", addr)
+		go ListenAndServeWebsocket(":" + config.MQTTServerWSPort) // ":8081" => WS-Connection
+		// MQTT-Server
+		go srv.ListenAndServe(addr)
+	}
+	// --------------------------------------------------------------------------------
+
+	for i, s := range config.Pins {
+		fmt.Println(i, s)
+	}
+
+	fmt.Println("--------")
+
+	if config.EnableMQTTClient {
+		fmt.Println("Warte auf MQTT Client...")
+		time.Sleep(1000 * time.Millisecond) // 2 Sek auf Server warten
+
+		MQTTClient = mqttConnect()
+		go heartbeatProcess(&MQTTClient, 30)
+	}
+	/*
+		icounter := 0
+		for {
+			icounter = icounter + 1
+			time.Sleep(1000 * time.Millisecond)
+			mqttPubMSG("/pin/17", string(icounter))
+		}
+	*/
+
+	err := rpio.Open()
+	if err != nil {
+		panic(fmt.Sprint("unable to open gpio", err.Error()))
+	}
+
+	defer rpio.Close()
+
+	//------------------------------------------------------------
+	// Pin Configuration
+	for _, pinConfig := range config.Pins {
+		pin := rpio.Pin(pinConfig.Pin)
+
+		if pinConfig.IO == "in" {
+			pin.Input()
+			//pin.PullUp()
+			//pin.PullDown()
+			//pin.Detect(rpio.RiseEdge) // AnyEdge / FallEdge 1->0 / RiseEdge 0->1
+		}
+
+		if pinConfig.IO == "out" {
+			pin.Output()
+
+			// Default PinState aus config setzen
+			if pinConfig.State == "1" {
+				pin.High()
+
+			} else {
+				pin.Low()
+			}
+		}
+	}
+
+	//------------------------------------------------------------
+	mqttStreamOutput := ""
+
+	for {
+
+		for i, pinConfig := range config.Pins {
+			//fmt.Println(i, pinConfig)
+
+			pin := rpio.Pin(pinConfig.Pin)
+
+			// Edge-Detection test
+			//if pin.EdgeDetected() {
+			//	newState := stringState(pin.Read())
+			//	fmt.Println("Edge raised: " + newState)
+			//}
+
+			if pinConfig.IO == "in" {
+
+				newState := stringState(pin.Read())
+
+				if newState != pinConfig.State {
+					// Pinstate in Config speichern
+					config.Pins[i].State = newState
+
+					// Pinstate in Datei schreiben
+					if config.EnableFileSystem {
+						writePinFileState(pinConfig.File, newState)
+					}
+
+					// Pinstate in MQTT-Topic kippen
+					if config.EnableMQTTClient {
+						pubmsg := message.NewPublishMessage()
+						pubmsg.SetTopic([]byte(pinConfig.MQTTTopic)) // /pin/17
+						pubmsg.SetPayload([]byte(newState))
+						MQTTClient.Publish(pubmsg, nil)
+					}
+				}
+
+			}
+
+			if pinConfig.IO == "out" {
+
+				// PinState aus Datei lesen
+				if config.EnableFileSystem {
+					if readPinFileState(pinConfig.File) {
+						pin.High()
+
+					} else {
+						pin.Low()
+					}
+				}
+
+				// Pinstate in MQTT-Topic kippen, falls er durch Datei geändert wurde
+				newState := stringState(pin.Read())
+				if newState != config.Pins[i].State {
+					if config.EnableMQTTClient {
+						pubmsg := message.NewPublishMessage()
+						pubmsg.SetTopic([]byte(pinConfig.MQTTTopic)) // /pin/17
+						pubmsg.SetPayload([]byte(newState))
+						MQTTClient.Publish(pubmsg, nil)
+					}
+				}
+			}
+
+			// Pinstate Ausgabe auf der Konsole
+			res := pin.Read()
+			fmt.Print(pinConfig.Pin)
+			fmt.Print(": ")
+			fmt.Println(res)
+
+			mqttStreamOutput = mqttStreamOutput + "" + strconv.Itoa(int(pinConfig.Pin)) + ": " + strconv.Itoa(int(res)) + "\r\n"
+		}
+
+		if config.EnableMQTTClient {
+			pubmsg := message.NewPublishMessage()
+			pubmsg.SetTopic([]byte("/pins")) // /pin/17
+			pubmsg.SetPayload([]byte(mqttStreamOutput))
+			MQTTClient.Publish(pubmsg, nil)
+		}
+		mqttStreamOutput = ""
+
+		// 100ms warten
+		time.Sleep(400 * time.Millisecond)
+		cmd := exec.Command("clear") //Linux example, its tested
+		cmd.Stdout = os.Stdout
+		cmd.Run()
+	}
+
+}
+
+//--------------------------------------------------------------------------
+// Hilfsfunktionen
+//--------------------------------------------------------------------------
+
+func fileExists(filename string) bool {
+	info, err := os.Stat(filename)
+	if os.IsNotExist(err) {
+		return false
+	}
+	return !info.IsDir()
+}
+
+func stringState(state rpio.State) string {
+	if state == Low {
+		return "0"
+	}
+	if state == High {
+		return "1"
+	}
+
+	return ""
+}
+
+func readPinFileState(filename string) bool {
+	if fileExists(filename) {
+		content, err := ioutil.ReadFile(filename)
+		if err != nil {
+			return false
+		}
+
+		text := strings.TrimSpace(string(content))
+		if strings.EqualFold(text, "1") {
+			return true
+		}
+
+	}
+
+	// Standardwert: false
+	return false
+}
+
+func writePinFileState(filename string, content string) bool {
+	if filename != "" {
+		f, err := os.Create(filename)
+		if err != nil {
+			fmt.Println(err)
+			return false
+		}
+		_, err = f.WriteString(content)
+		if err != nil {
+			fmt.Println(err)
+			f.Close()
+			return false
+		}
+
+		err = f.Close()
+		if err != nil {
+			fmt.Println(err)
+			return false
+		}
+	}
+	return true
+}
+
+func readConfig(filename string) *Configuration {
+	// initialize conf with default values.
+	conf := &Configuration{}
+
+	b, err := ioutil.ReadFile(filename)
+	if err != nil {
+		return conf
+	}
+	if err = json.Unmarshal(b, conf); err != nil {
+		return conf
+	}
+	return conf
+}
+
+// State of pin, High / Low
+const (
+	Low rpio.State = iota
+	High
+)
+
+func mqttConnect() service.Client {
+	// Instantiates a new Client
+	client = &service.Client{}
+
+	// Creates a new MQTT CONNECT message and sets the proper parameters
+	msg := message.NewConnectMessage()
+	msg.SetWillQos(0)
+	msg.SetVersion(4)
+	msg.SetCleanSession(true)
+	msg.SetClientId([]byte("gPIo"))
+	msg.SetKeepAlive(20)
+	//msg.SetWillTopic([]byte("will"))
+	//msg.SetWillMessage([]byte("send me home"))
+	//msg.SetUsername([]byte("gPIo"))
+	//msg.SetPassword([]byte(""))
+
+	// Connects to the remote server at 127.0.0.1 port 1883
+	//c.Connect("tcp://127.0.0.1:1883", msg)
+	//c.Connect("tcp://test.mosquitto.org:1883", msg)
+	if err := client.Connect("tcp://"+config.MQTTClientAddress+":"+config.MQTTClientPort, msg); err != nil {
+		log.Fatal(err)
+	}
+
+	//time.Sleep(5000 * time.Millisecond)
+
+	pubmsg := message.NewPublishMessage()
+	pubmsg.SetTopic([]byte("/topic"))
+	pubmsg.SetPayload([]byte("msg"))
+	pubmsg.SetQoS(0)
+
+	// Publishes to the server by sending the message
+	err := client.Publish(pubmsg, nil)
+	if err != nil {
+		fmt.Print("Fehler: ")
+	}
+
+	// Subscribe MQTTTopics
+	submsg := message.NewSubscribeMessage()
+
+	for _, pincfg := range config.Pins {
+		if pincfg.MQTTTopic != "" {
+			fmt.Println(" - Subscribe MQTT-Topic: " + pincfg.MQTTTopic)
+			submsg.AddTopic([]byte(pincfg.MQTTTopic), 0)
+		}
+	}
+
+	client.Subscribe(submsg, nil, mqttOnPublishFunc)
+
+	return *client
+}
+
+func mqttOnPublishFunc(msg *message.PublishMessage) error {
+	topic := string(msg.Topic())
+	payload := string(msg.Payload())
+
+	fmt.Println(topic)
+	fmt.Println(payload)
+
+	for i, pinConfig := range config.Pins {
+		if pinConfig.MQTTTopic == topic {
+			pin := rpio.Pin(pinConfig.Pin)
+			if payload == "1" {
+				pin.High()
+			} else if payload == "0" {
+				pin.Low()
+			}
+
+			// Pinstate in Config speichern
+			newState := stringState(pin.Read())
+			config.Pins[i].State = newState
+
+			// Pinstate in Datei schreiben
+			if config.EnableFileSystem {
+				writePinFileState(pinConfig.File, newState)
+			}
+		}
+	}
+
+	return nil
+}
+
+func mqttPubMSG(topic string, msg string) {
+	// Creates a new PUBLISH message with the appropriate contents for publishing
+	pubmsg := message.NewPublishMessage()
+	pubmsg.SetTopic([]byte(topic))
+	pubmsg.SetPayload([]byte(msg))
+	pubmsg.SetQoS(0)
+
+	// Publishes to the server by sending the message
+	err := MQTTClient.Publish(pubmsg, nil)
+	if err != nil {
+		fmt.Print("Fehler: ")
+		fmt.Println(err)
+		//MQTTClient.Unsubscribe()
+		MQTTClient.Disconnect()
+		MQTTClient = mqttConnect()
+		MQTTClient.Publish(pubmsg, nil)
+	}
+}
+
+func heartbeatProcess(c *service.Client, KeepAlive int) {
+	for _ = range time.Tick(time.Duration(KeepAlive) * time.Second) {
+		//fmt.Println("Ping OK")
+		err := c.Ping(nil)
+		if err != nil {
+			fmt.Print("Fehler: ")
+			fmt.Println(err)
+		}
+	}
+}

websocket.go

@@ -0,0 +1,102 @@
+package main
+
+import (
+	"io"
+	"net"
+	"net/http"
+	"net/url"
+
+	"github.com/surge/glog"
+	"golang.org/x/net/websocket"
+)
+
+func DefaultListenAndServeWebsocket() error {
+	if err := AddWebsocketHandler("/mqtt", "test.mosquitto.org:1883"); err != nil {
+		return err
+	}
+	return ListenAndServeWebsocket(":1234")
+}
+
+func AddWebsocketHandler(urlPattern string, uri string) error {
+	glog.Debugf("AddWebsocketHandler urlPattern=%s, uri=%s", urlPattern, uri)
+	u, err := url.Parse(uri)
+	if err != nil {
+		glog.Errorf("surgemq/main: %v", err)
+		return err
+	}
+
+	h := func(ws *websocket.Conn) {
+		WebsocketTcpProxy(ws, u.Scheme, u.Host)
+	}
+	http.Handle(urlPattern, websocket.Handler(h))
+	return nil
+}
+
+/* start a listener that proxies websocket <-> tcp */
+func ListenAndServeWebsocket(addr string) error {
+	return http.ListenAndServe(addr, nil)
+}
+
+/* starts an HTTPS listener */
+func ListenAndServeWebsocketSecure(addr string, cert string, key string) error {
+	return http.ListenAndServeTLS(addr, cert, key, nil)
+}
+
+/* copy from websocket to writer, this copies the binary frames as is */
+func io_copy_ws(src *websocket.Conn, dst io.Writer) (int, error) {
+	var buffer []byte
+	count := 0
+	for {
+		err := websocket.Message.Receive(src, &buffer)
+		if err != nil {
+			return count, err
+		}
+		n := len(buffer)
+		count += n
+		i, err := dst.Write(buffer)
+		if err != nil || i < 1 {
+			return count, err
+		}
+	}
+	return count, nil
+}
+
+/* copy from reader to websocket, this copies the binary frames as is */
+func io_ws_copy(src io.Reader, dst *websocket.Conn) (int, error) {
+	buffer := make([]byte, 2048)
+	count := 0
+	for {
+		n, err := src.Read(buffer)
+		if err != nil || n < 1 {
+			return count, err
+		}
+		count += n
+		err = websocket.Message.Send(dst, buffer[0:n])
+		if err != nil {
+			return count, err
+		}
+	}
+	return count, nil
+}
+
+/* handler that proxies websocket <-> unix domain socket */
+func WebsocketTcpProxy(ws *websocket.Conn, nettype string, host string) error {
+	client, err := net.Dial(nettype, host)
+	if err != nil {
+		return err
+	}
+	defer client.Close()
+	defer ws.Close()
+	chDone := make(chan bool)
+
+	go func() {
+		io_ws_copy(client, ws)
+		chDone <- true
+	}()
+	go func() {
+		io_copy_ws(ws, client)
+		chDone <- true
+	}()
+	<-chDone
+	return nil
+}
